FE-36 AFTERSHOCK ELEVATORS

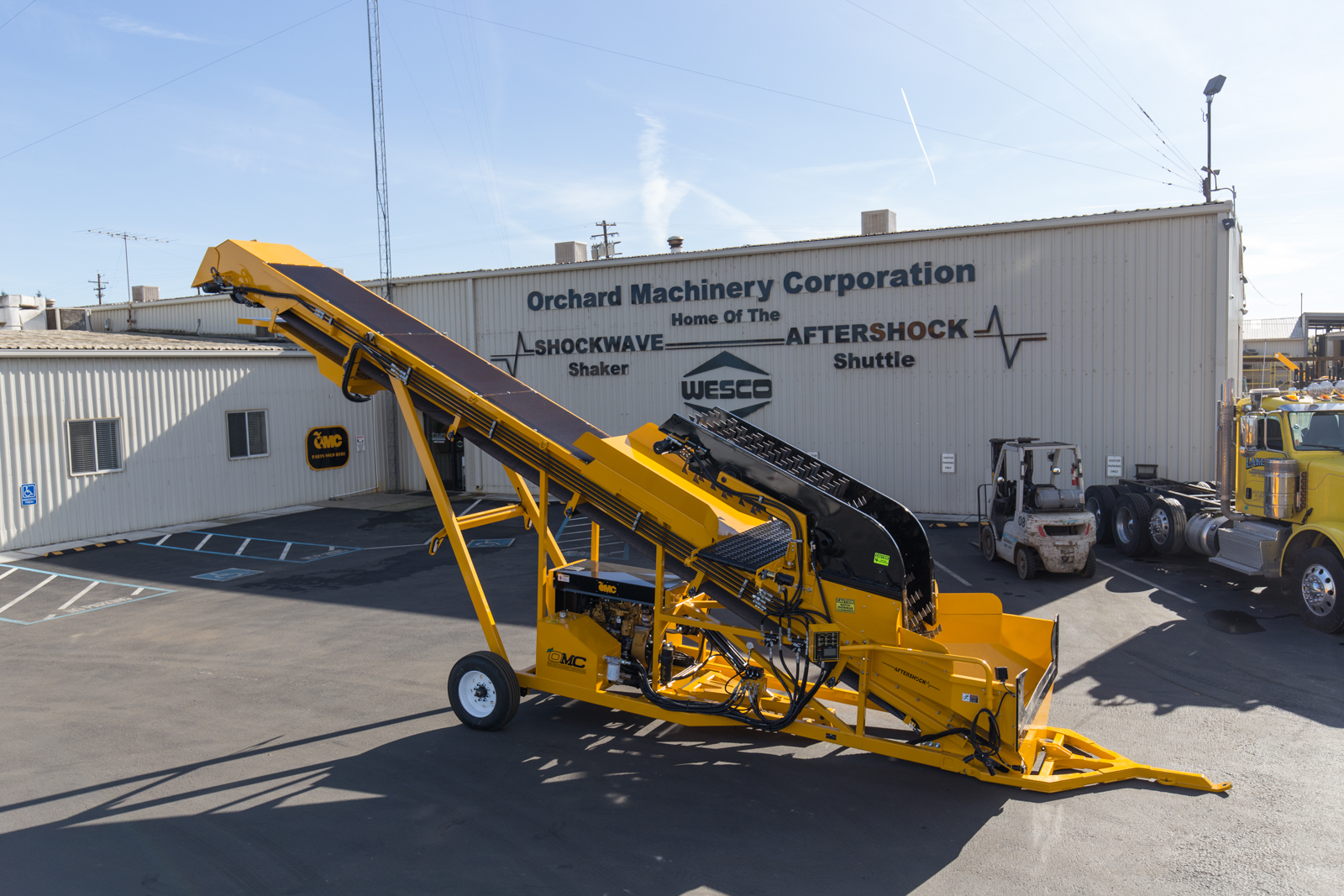

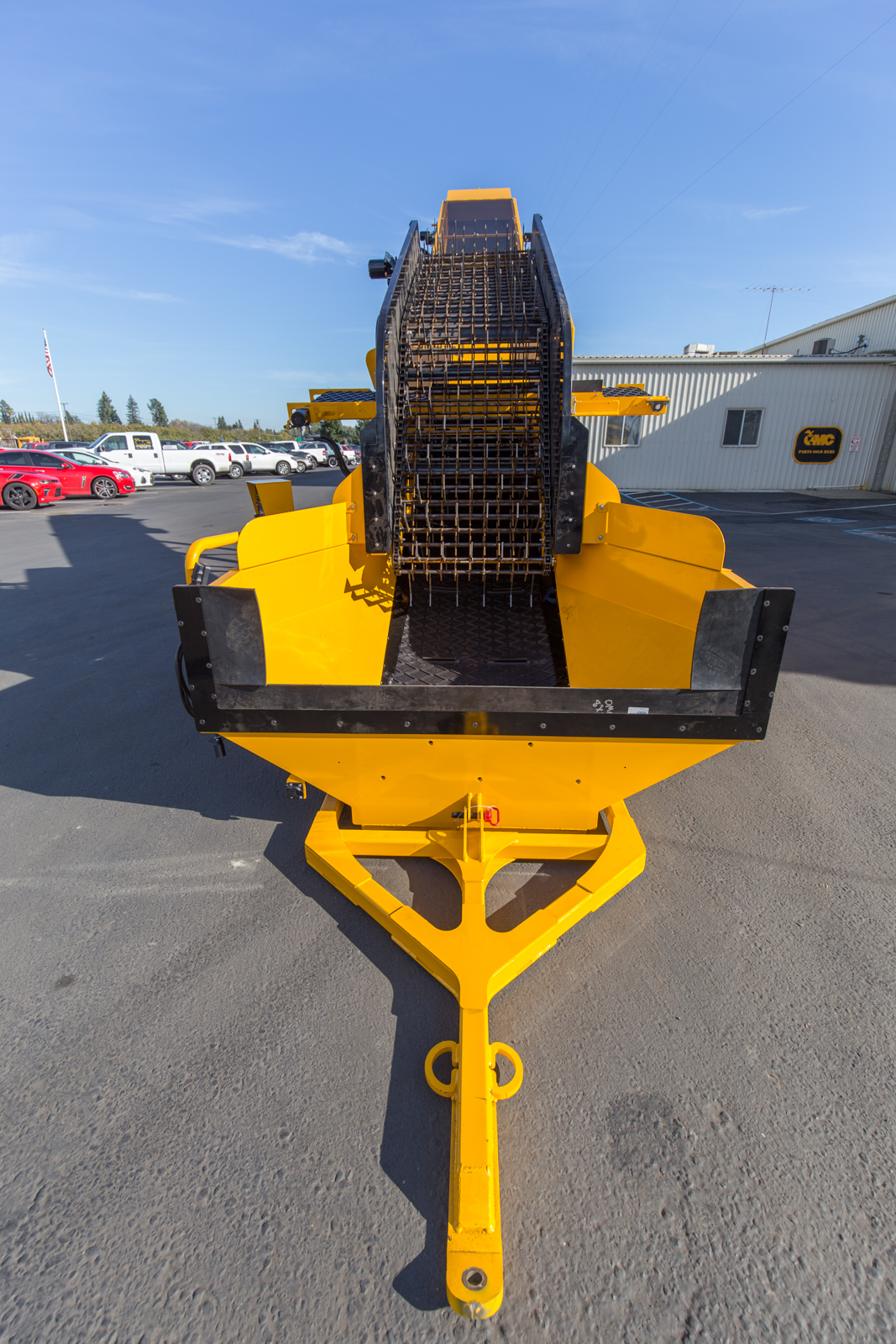

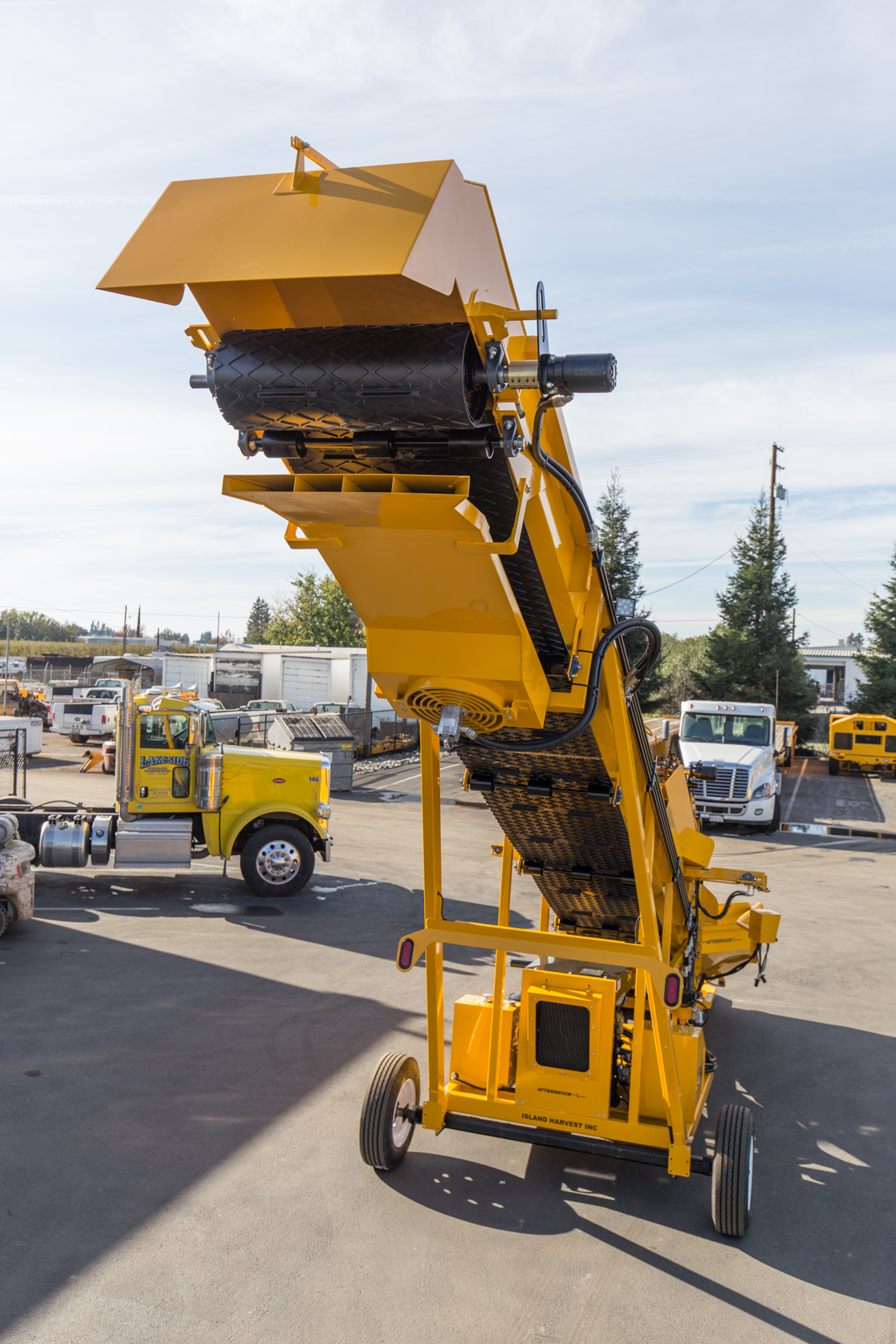

Aftershock FE-36 Elevator

Similar to the SE-180, but without the swinging conveyor, the Aftershock FE-36 elevator works in tandem with a front-dump shuttle such as OMC’s Aftershock AR-450. The FE-36 controls are swingarm-mounted so that they are accessible to the driver of a shuttle, ensuring the driver’s safety, improving the unloading speed, and improving the efficiency of the operator in the field.

Standard Features

• 36” wide belt – Giant Z Top Belt
• 74hp Cummins F3.8 Stage V turbo diesel engine – No DEF
• Swingarm controls
• LED night lights
• Tow lights with turn signals
• Powder coat finish
• Hydraulic lift and skid plate
• 235/75R-17.5 tires (6,000 lb rating)
• Discharge height: 14 feet, 6 inches
• Length: 38 feet, 6 inches
• Width: 105 inches
• Towing height: 13 feet, 6 inches
• Towing length: 40 feet
• Fuel capacity: 40 gallons

Optional Features

• De-sticker with sliding stick conveyor
• Cleated belts (in place of Z top)
• Hydraulic top deflector
• Electric brakes
• Leaf fan
