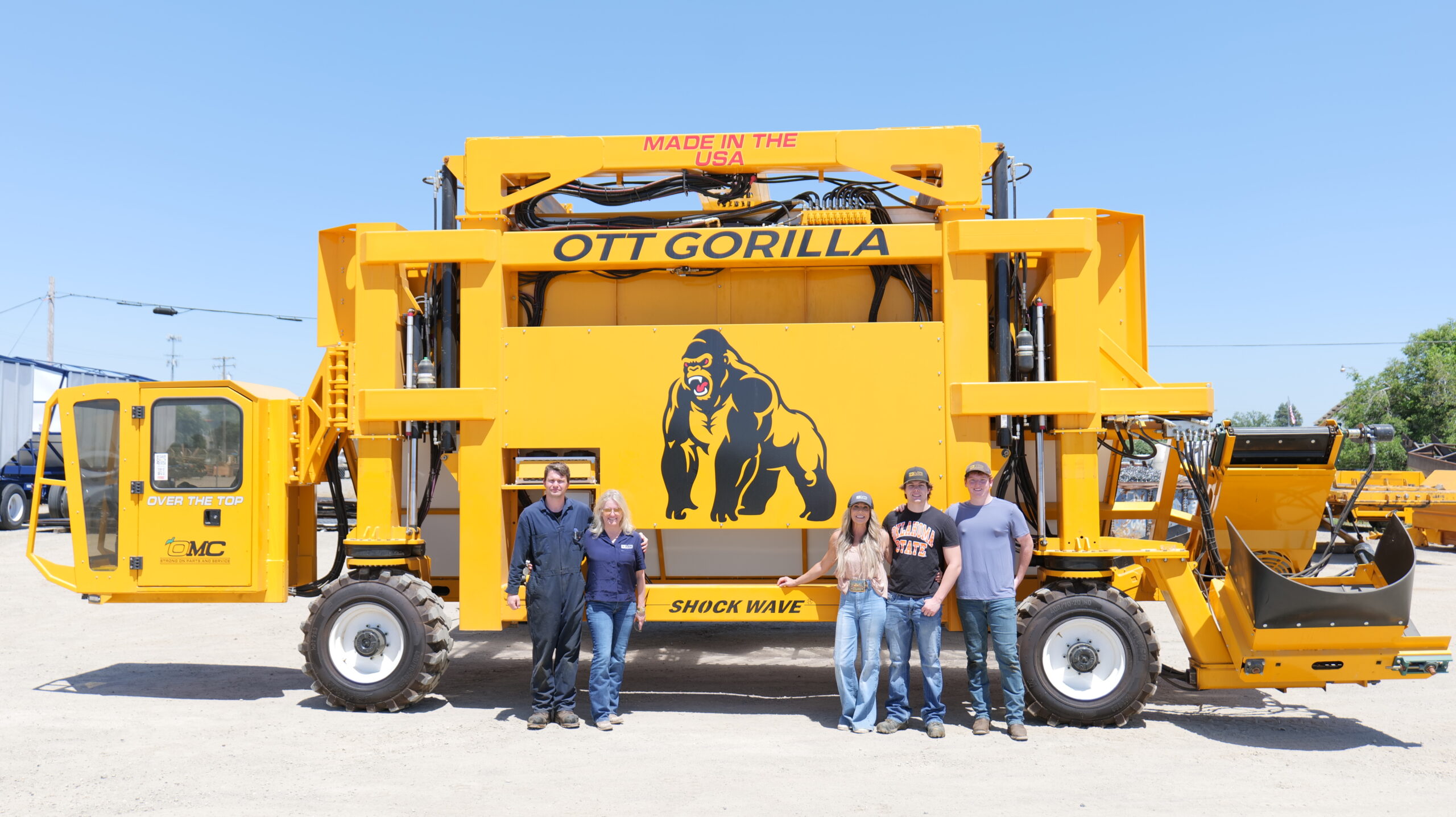

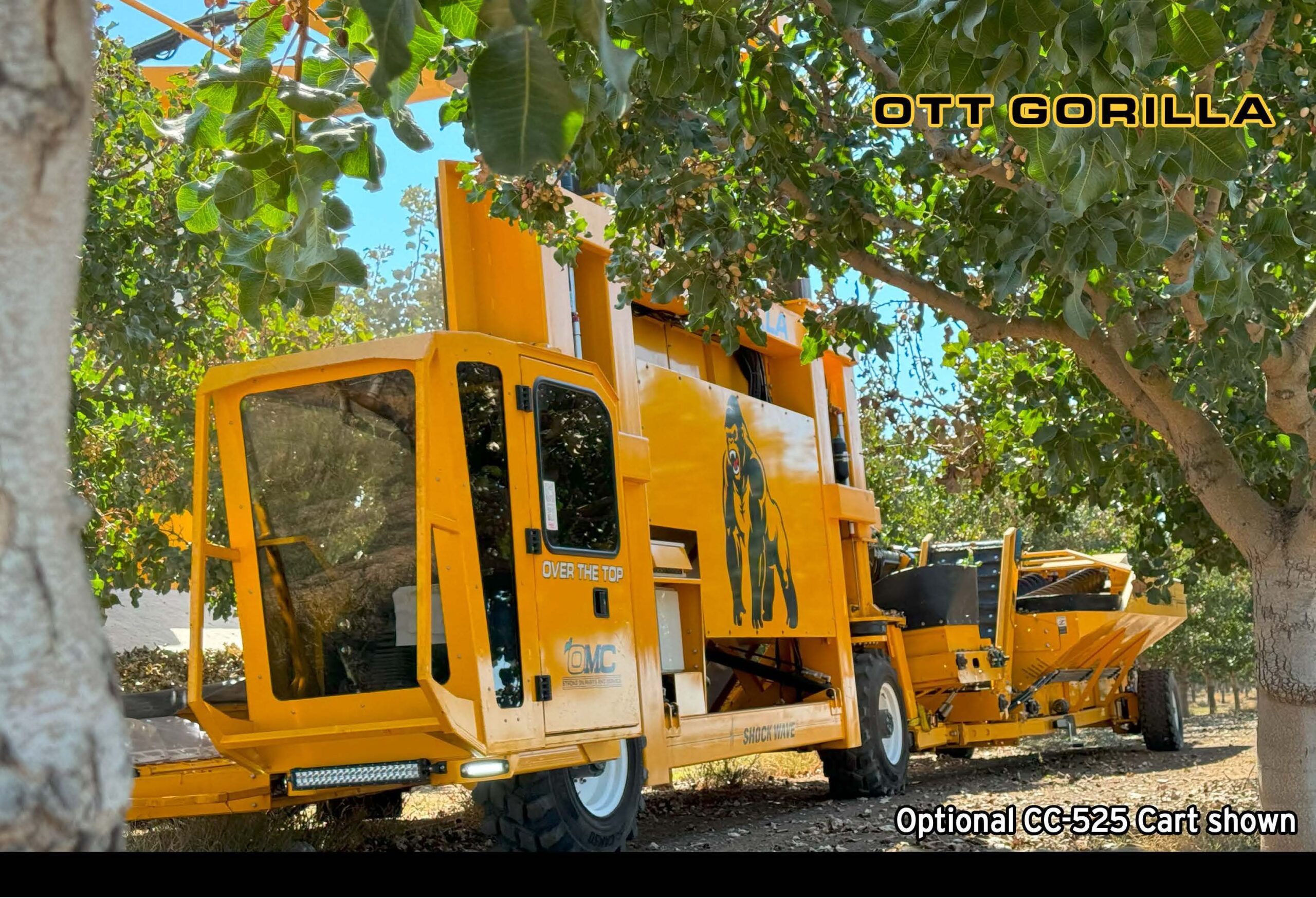

OTT – OVER THE TOP HARVESTER
OTT (Over The Top Harvester)
Standard Features
- 200HP Cummins B4.5 Stage V turbo-diesel engine
- Hydraulically-reversing engine-driven fan
- Shaker head with 20-inch oval pads
- Load Sense Hydraulic System
- 26-in main, lift, and discharge conveyors
- Parking brake
- 400/70-20 tires
- Four wheel hydrostatic motor drive
- Hydraulic leaf blower
- Powder coat finish
- LED lighting and marker lights
Specs
- Fuel capacity: 60 gallons
- Hydraulic oil capacity: 109 gallons
- Transport Height: 11-ft, 11-inch
- Field Height:
- At 3-inch ground clearance: 18-ft, 3-in
- At 30-inch ground clearance: 20-ft, 6-in
- Wheelbase: 191 inches
- Machine width: 18-ft
- Overall width to outside of cab: 20-ft, 3-in
- Transport width: 12-ft
- Width inside of machine: 15-ft
- Length: 35-ft
- Center of Clamp Height on Tree:
- At 3-in ground clearance: 10-in
- At 30-in ground clearance: 37-in
