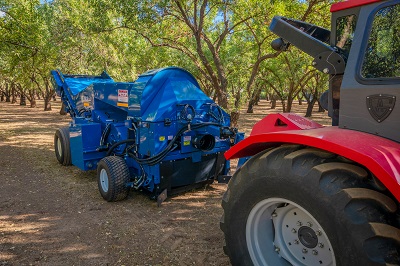

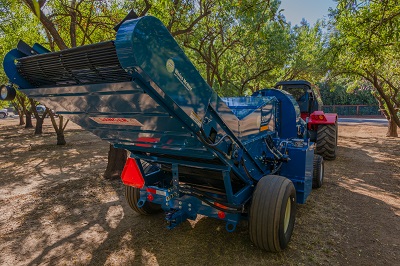

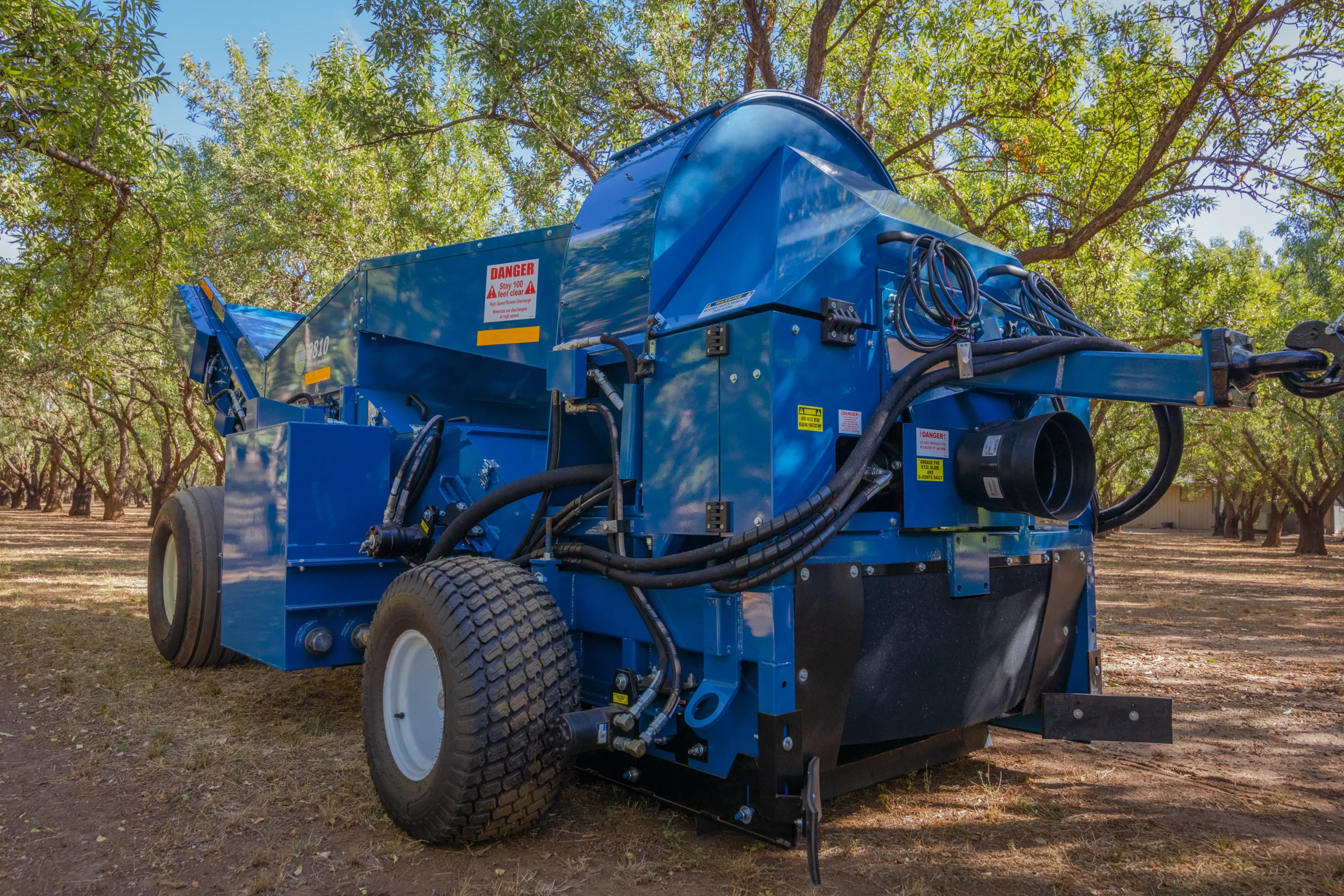

9810 Harvester
The 9810 Harvester is a recent upgrade to the successful 9800 harvester. Refreshed pumps, motors and hydraulic tank, coupled by a new hydraulic circuit, and drive improvements for almond, walnut and hazelnut harvesting. Active cooling boosts the bank-out option cart flexibility. These innovations lead to improved efficiency and improved thermal performance that let the machine do more to bring in your harvest. Dirt drops through the chains before the proven vacuum system pulls debris from the crop, delivering less dust and a cleaner harvest. The 9810 is designed to meet California clean air and water regulations. Extra-large rear balloon tires provide maximum flotation for reduced compaction. Serviceability is improved by a vacuum housing and tunnel designed for easier access and simpler replacement.
- Economical
- Optimized Hydraulics Run Cooler
- Easier Belt Change with Gearbox
- Faster, Cleaner Harvest
- Streamlined Profile
- Easy Access to all Parts for Convenient Servicing
- Onboard Stowage for PTO Shaft
Standard Features
- Availability: Worldwide
- Minimum horsepower: Single pump option: 65 HP
- Bank-out option: 85 HP
- P.T.O. shaft: 44 Series
- Gear box: High speed, long life
- Dirt chain: Twin-rod, belted bar, mesh, tube, and flat wire
- For almond, walnut, and hazelnut applications
- Windrow capacity: 48″
- Bank-out hydraulics (option)
- Paddle wheels (option)
- Hydraulic hitch (option)
- Camera (option)
- Tractor-controlled work lights (option)
- 2-speed elevator (option)
- Length: 237″
- Height: 82″
- Width: 89″
- Wheelbase: 101″
- Designed for optimal efficiency and serviceability
