CC-525 Cart
CC-525 Cart

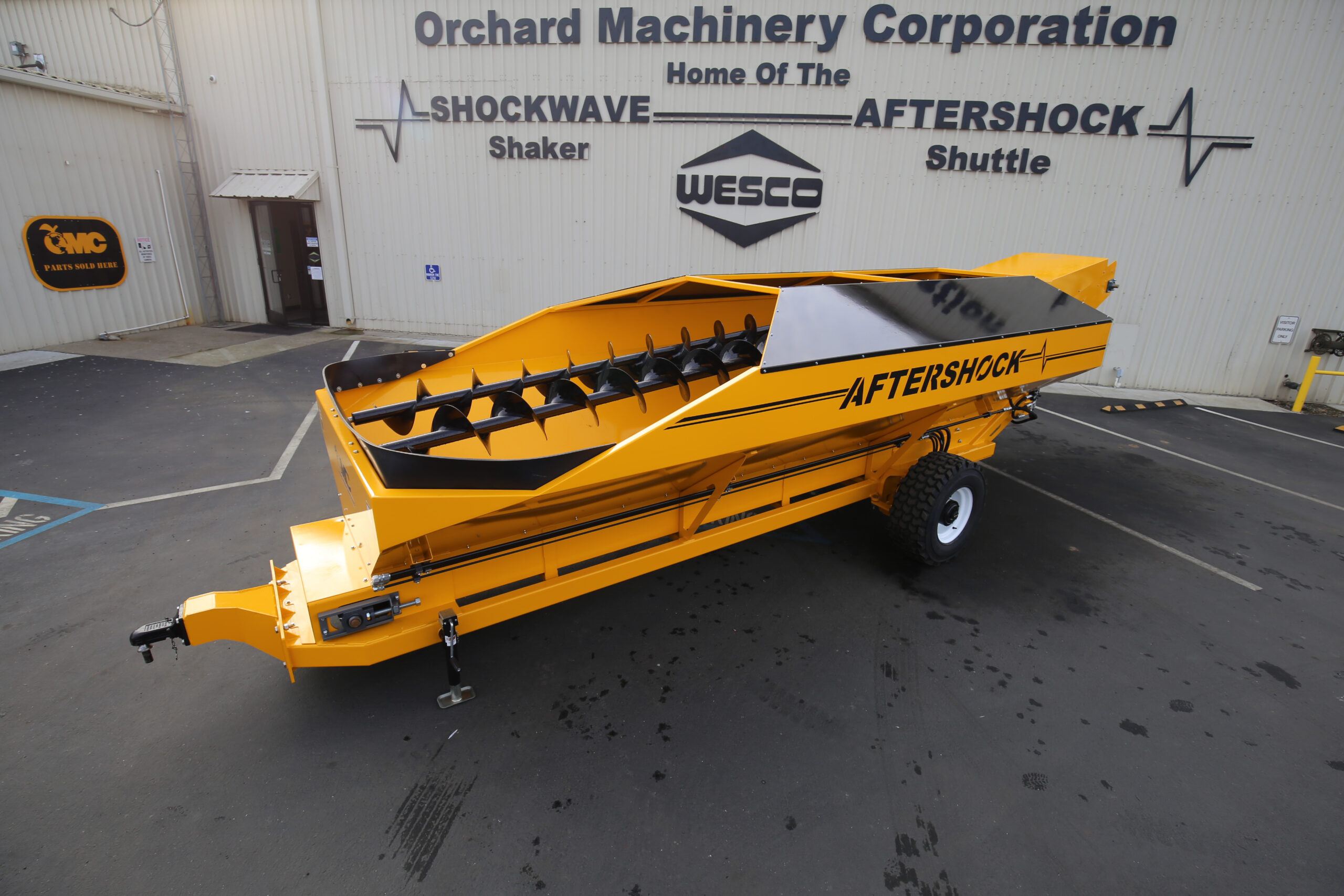

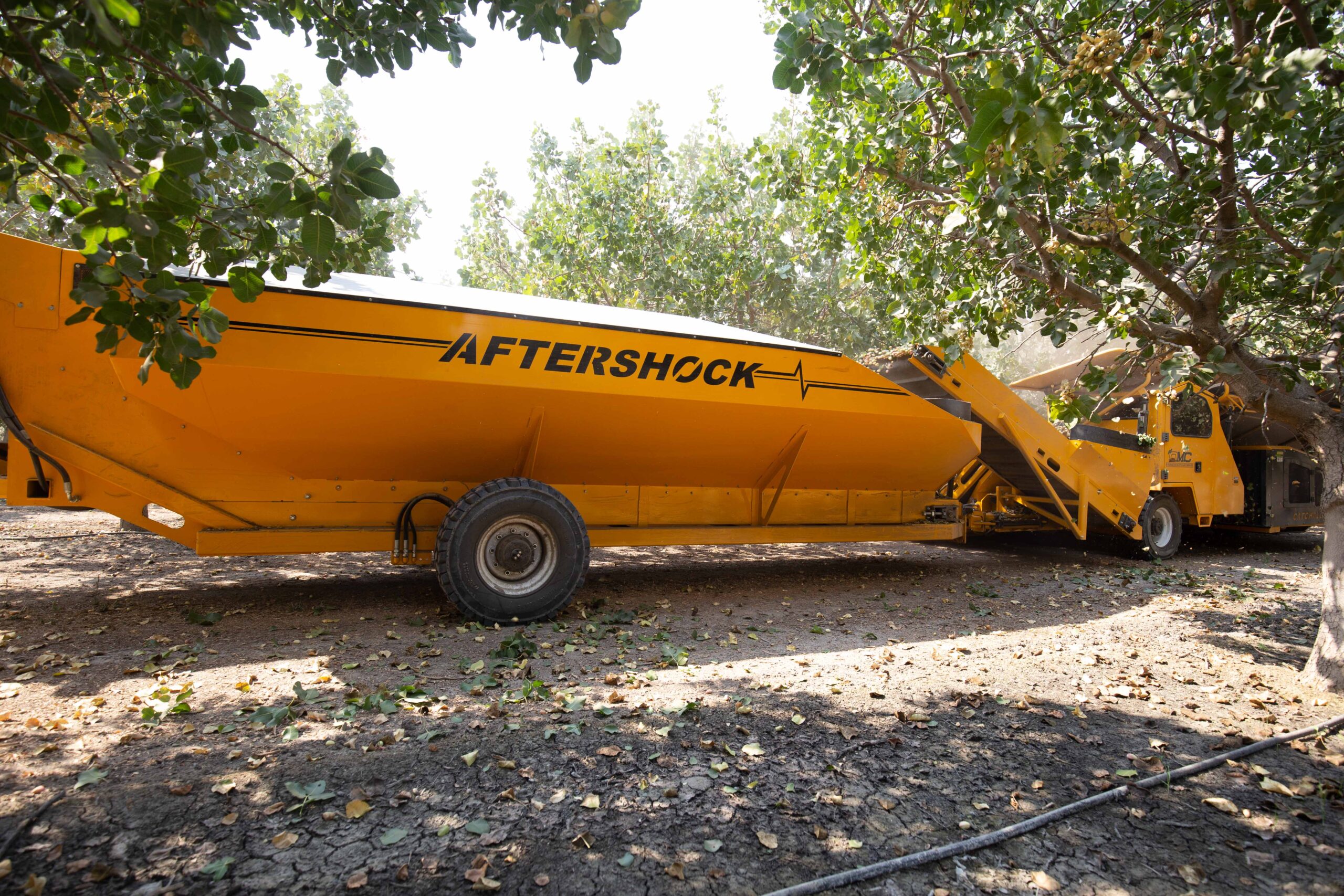

The Aftershock CC-525 is a conveyor cart featuring 525 cubic feet of capacity, a single chain delivery system with 30 inch conveyor width, and dual leveling augers. The CC-525 works especially well when teamed with OMC’s Shockwave Catch-All VII two-piece shaker/receiver system configured with a bulk discharge conveyor.
Specifications
MODEL 636LP (LOW PROFILE)
- Horsepower requirement: Minimum 60 HP
- PTO shaft: 35 Series
- Gearbox: Heavy-duty Superior
- Vacuum fan: 6 abrasion-resistant steel bolt-on blades
- Dirt chain width: 36″
- Pickup type: 36″ drum with front feed paddle wheels for 48″ windrows
- Windrow capacity: 48″
- Elevator drive: Hydraulic with speed control, rubber-covered drive rollers
- Length: 209″
- Wheelbase: 80.5″
- Height: 76″
Model 836XL (Extra Length)
- Horsepower requirement: Minimum 60 HP
- PTO shaft: 35 Series
- Gearbox: Heavy-duty Superior
- Vacuum fan: 6 abrasion-resistant steel bolt-on blades
- Dirt chain width: 36″
- Pickup type: 36″ drum with front feed paddle wheels for 48″ windrows
- Windrow capacity: 48″
- Elevator drive: Hydraulic with speed control, rubber-covered drive rollers
- Length: 223″
- Wheelbase: 84.5″
- Height: 76″
