AR 400

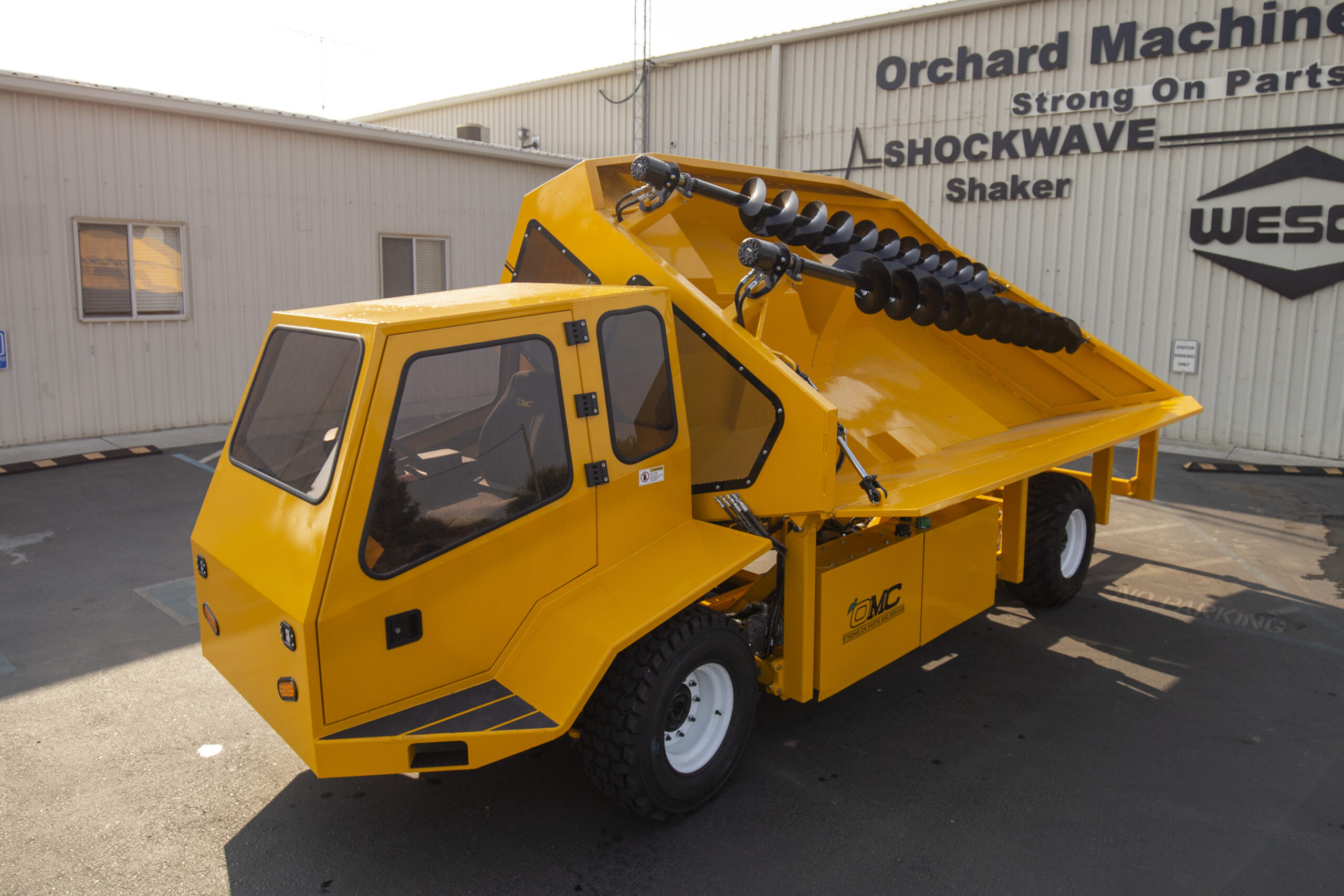

Aftershock AR400 Shuttle

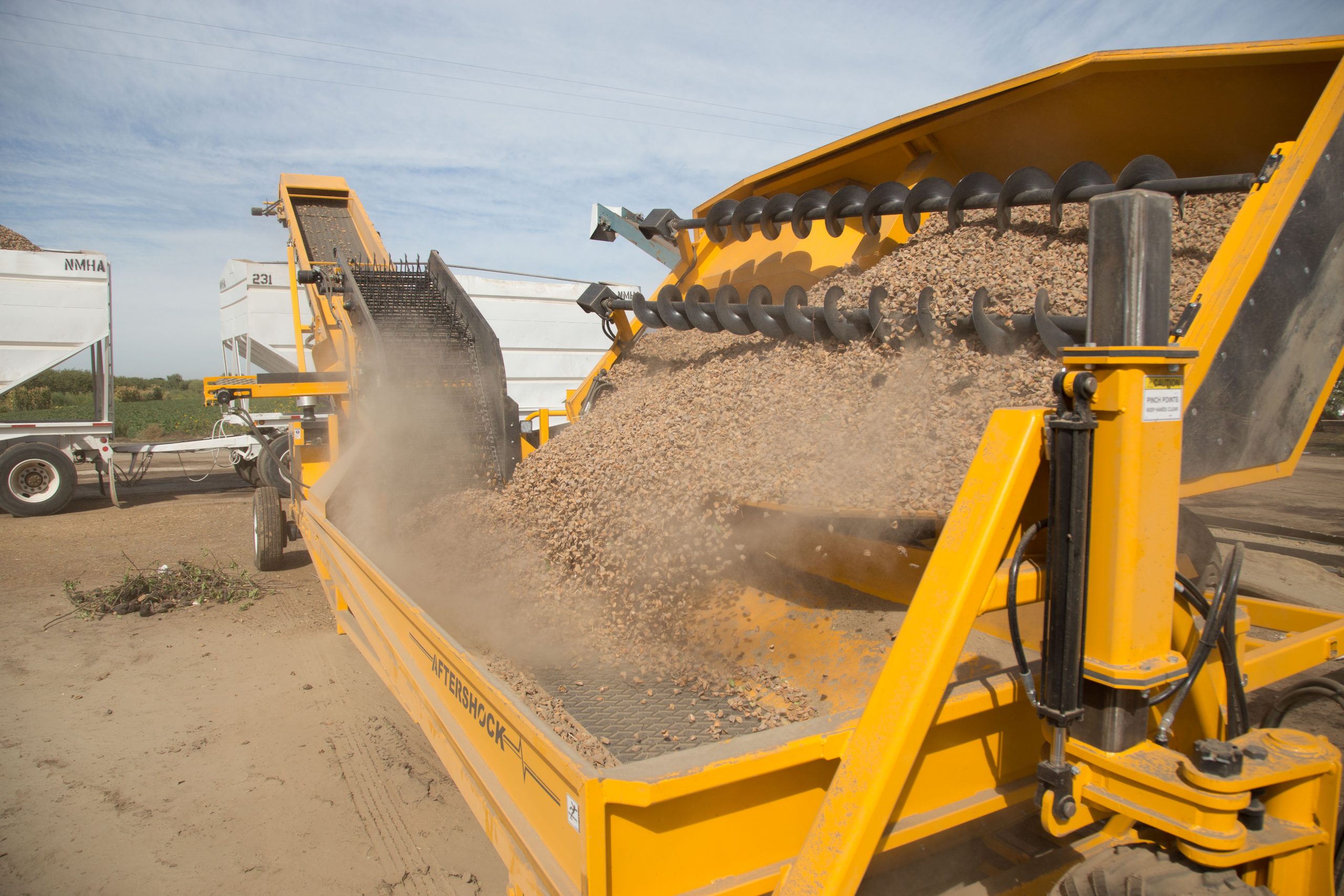

The key feature of the Aftershock AR400 Series III shuttle is its 180-degree powered rotating driver’s console. This standard feature allows the driver to approach the conveyor cart driving backwards to load the shuttle. Once the cart is unloaded into the shuttle, the driver stops the shuttle, rotates the seat 180 degrees to the forward position, and can then drive back up the row without having to wait for the cart and harvester to move out of the way. The shuttle achieves a top speed of 30 MPH (48KPH) whether driving forward or backward.  The AR400 shuttle works best when paired with OMC’s Aftershock SD-36 side-dump elevator and Aftershock CC-350 conveyor cart.

The AR400 features an articulating rear axle to go with the standard air ride suspension in front and rear. Additionally, a powerful Cummins turbo-diesel engine is standard, displacing 3.8L and providing 148hp to the load sense hydraulic system and achieving Stage V emissions performance. The interior is upgraded as well, featuring a composite operator’s console, intuitive controls, Hehr safety glass, and a redesigned cab and windows to improve operator visibility from the driver’s seat.

Standard Features

• 148HP Cummins F3.8 Stage V turbo diesel engine with hydraulic reversing fan and hydraulic oil cooler
• Color Monitor and Joystick controls
• Load Sense hydraulic system
• Air conditioned cabin with 180 degree rotating operator platform
• Hehr safety glass in front and side windows
• Hydrostatic pressure compensating wheel motor drive with 15:1 gear ratio (0-30 mph)
• Air Ride Suspension
• LED night lights
• Powdercoat finish
• Back-up warning system
• Seat belt
• Adjustable load speed
• Parking and service brake
• Turn signals and stop lights
• 12×16.5 – 12-Ply tires
• Rear tow plug
• Dual augers
• Length: 21 feet
• Width: 8 feet, 6 inches
• Height: 7 feet, 6 inches
• Tank Capacity: 440 cubic feet
• Fuel capacity: 45 gallons

Optional Features

• Rear sand tires, 400/55-17 Flotation (with 19:1 gear ratio)
