SE-180 AFTERSHOCK ELEVATORS

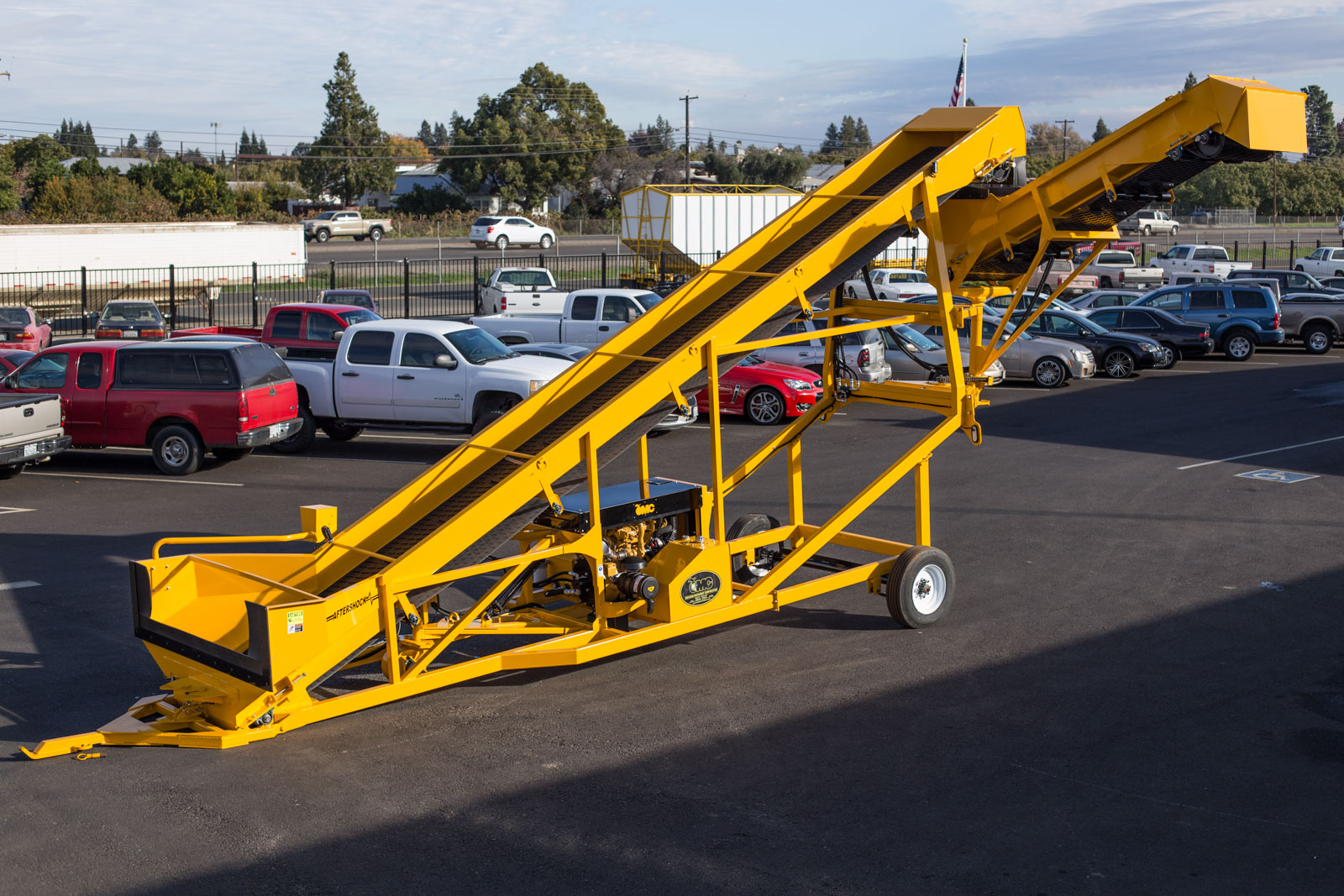

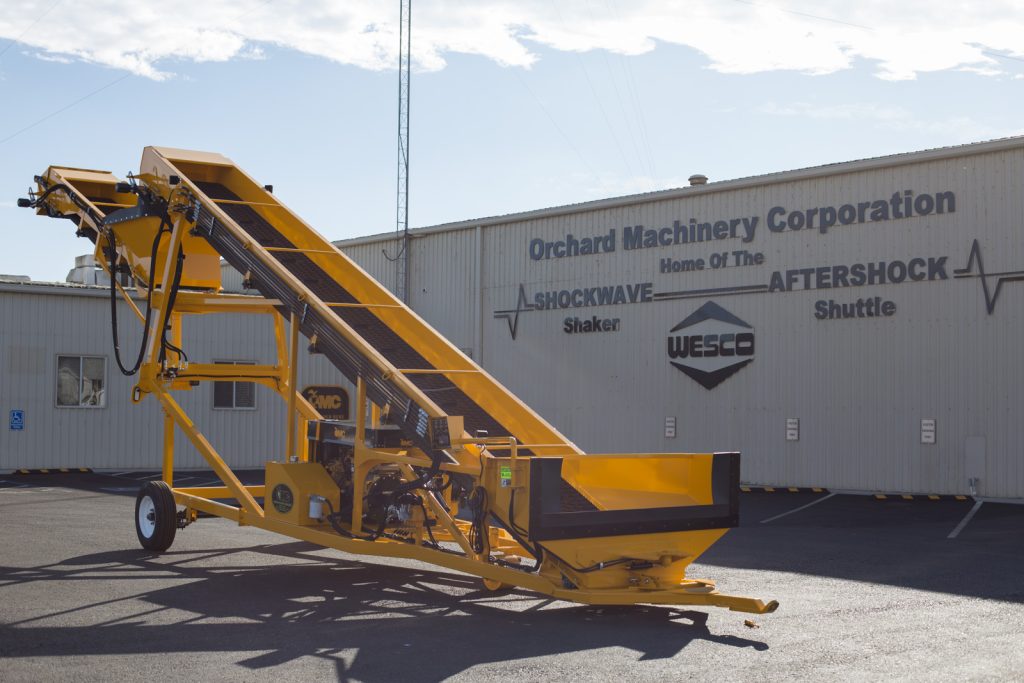

Aftershock SE-180 Elevator

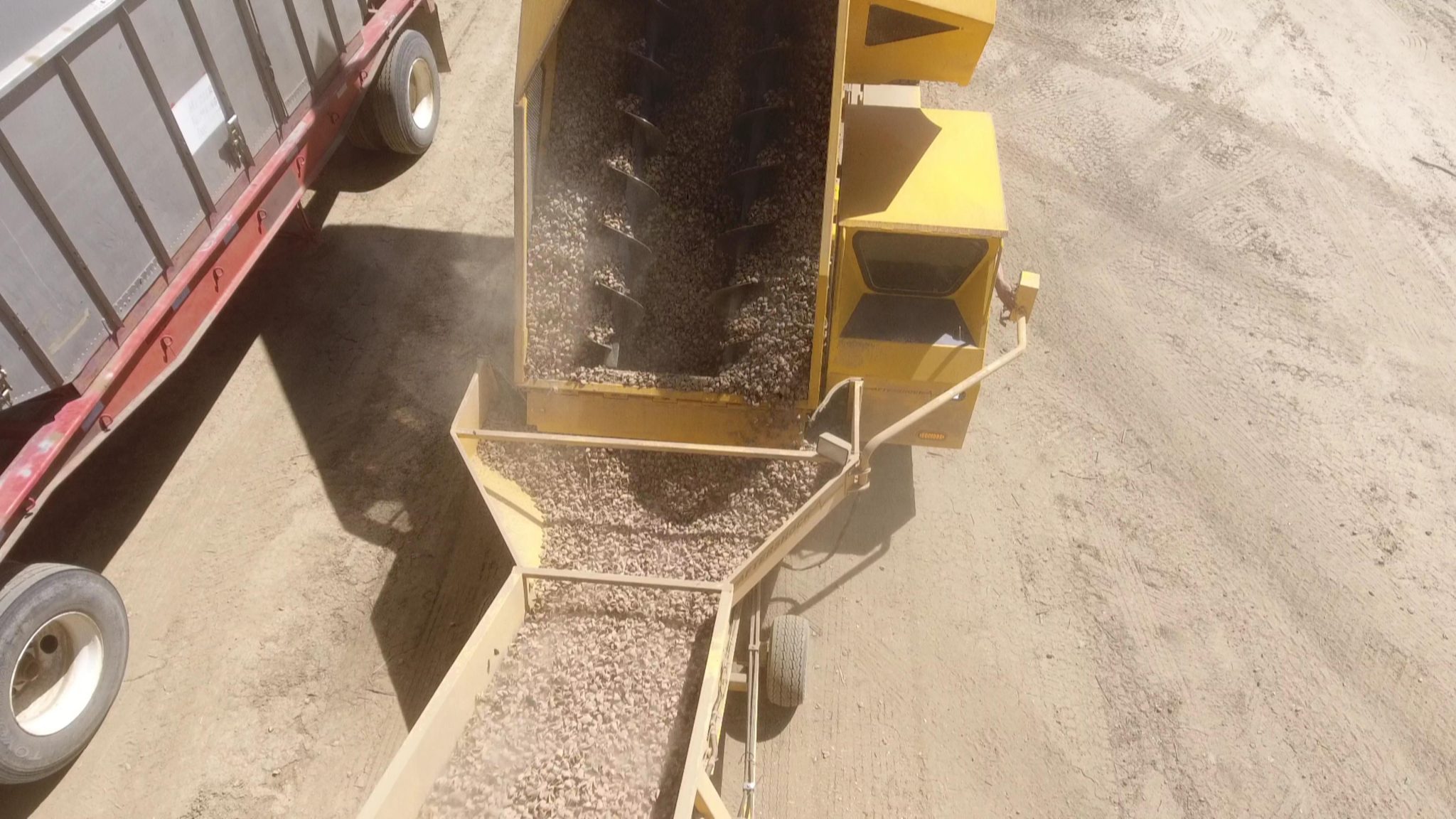

The Aftershock SE-180 Series III elevator works in tandem with a front-dump shuttle such as OMC’s Aftershock AR-450, efficiently unloading your product and enabling the filling of multiple trailers with its 180-degree swinging top conveyor. The SE-180 controls are swingarm-mounted so that they are accessible to the driver of a shuttle, ensuring the driver’s safety, improving the unloading speed, and improving the efficiency of the operator in the field.

Standard Features

• 36” wide belt – Giant Z Top Belt
• 74hp Cummins F3.8 Stage V turbo diesel engine – No DEF
• 180-degree swing discharge conveyorSwingarm controls
• LED night lights, tow lights, and turn signals
• Powder coat finish
• Hydraulic lift – Crazy wheel
• 235/75R-17.5 tires (6,000 lb rating)
• 12,000lb axle with leaf spring suspension14’6” discharge height
• Width: 8 feet
• Length: 47 feet, 9 inches
• Towing Height: 13 feet, 6 inches
• Fuel capacity: 44 gallons

Optional Features

• Cleated belts (in place of Z top)
• Operator platform
• Electric brakes
• Hydraulic locking coupling system
• Leaf fan
• Walnut cleaning top chain (no leaf fan option)
• Self-propelled ground drive
• De-sticker with sliding stick conveyor
